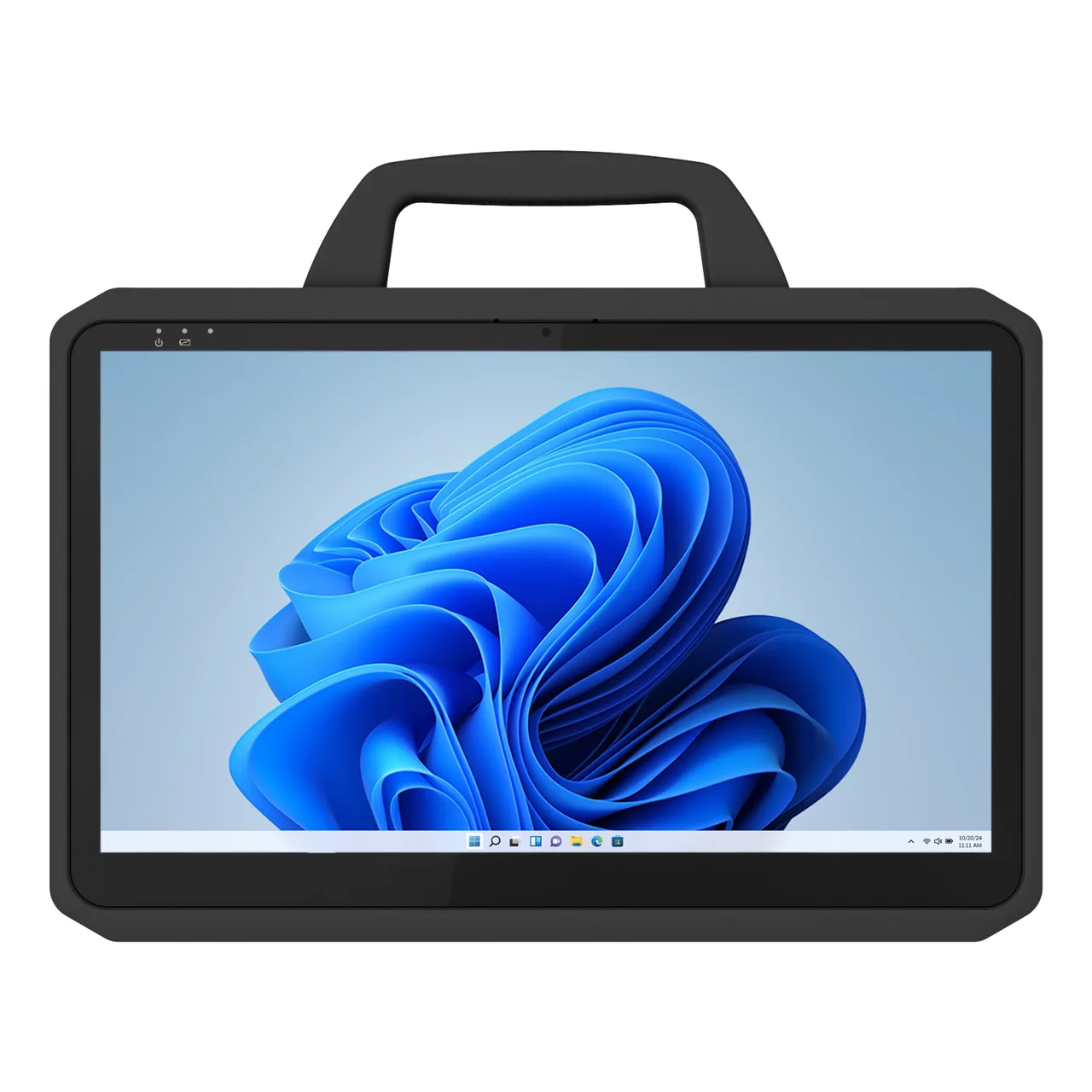

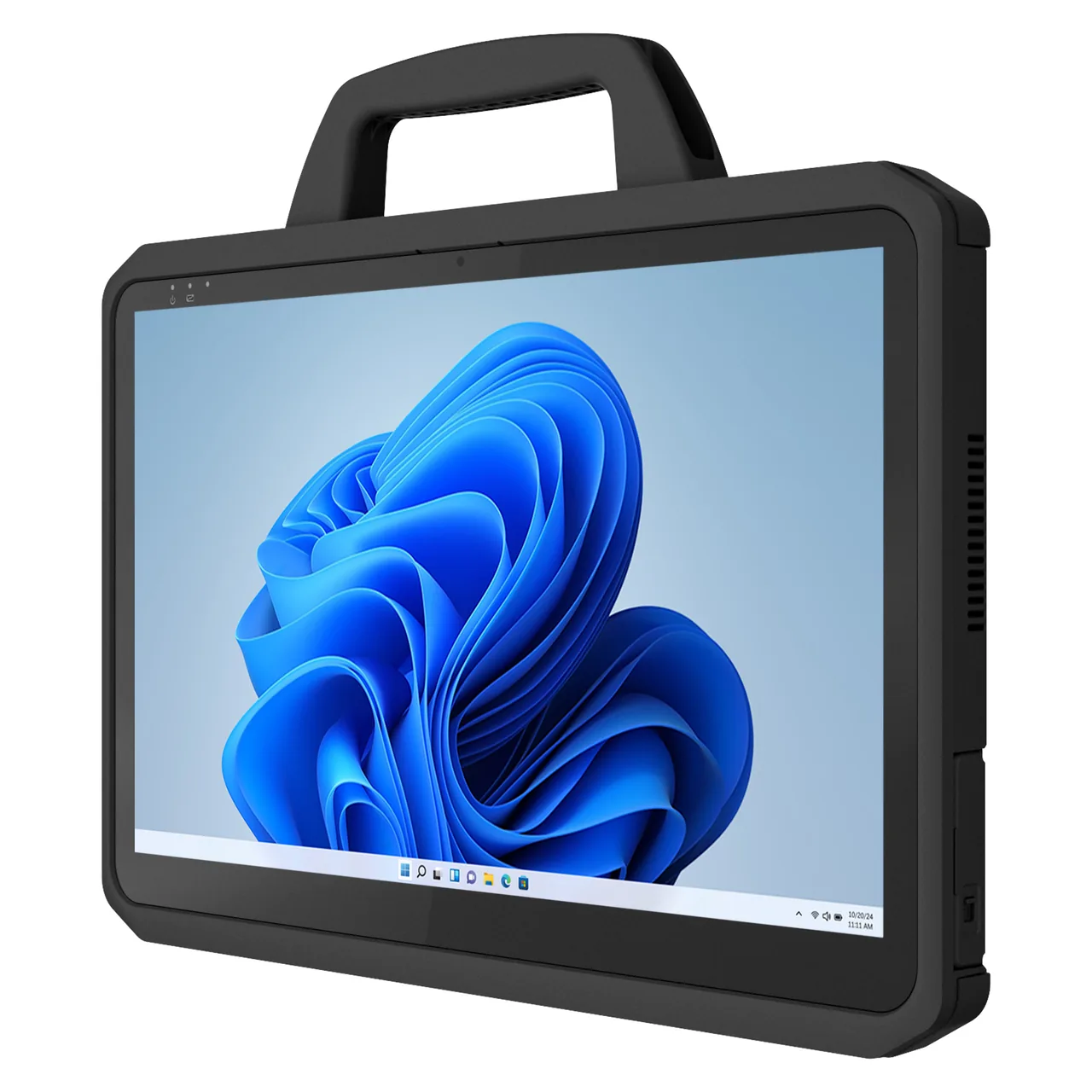

Volanti 15.6" Rugged Tablet for Construction

Name: Plan Review Tables
Brand: Volanti Displays

A full Windows computer built for field use — with a sunlight-readable touchscreen, rugged construction, and USB-C connectivity to compatible Volanti Plan Review displays.

One Computer, From the Field to Plan Review

Run your Windows construction software where the work is happening.
Review drawings, RFIs, photos, schedules and project information on a 15.6" touchscreen.
Return to the trailer or office and connect the tablet to a compatible Volanti touchscreen over USB-C.
Continue working with the same computer, applications and project files on a much larger interactive display.

The Volanti Rugged Tablet extends your digital construction setup beyond the trailer or office. Use it as a self-contained Windows computer in the field, then connect it to a Volanti Plan Review touchscreen when you need more screen space for detailed drawings, markup or group review.

Book an Online Demo Jump to Document Downloads

From 15.6" in the Field to 43", 55" or 65" for Review

Use the tablet where portability matters. Connect it to a Volanti touchscreen when screen size matters.

In the field, the rugged 15.6" display gives you access to plans, project information and Windows applications at the point of work. Back in the job trailer, meeting room or project office, connect the tablet by USB-C to a compatible Volanti display and use the larger touchscreen as your working surface.

Same computer — no need to switch to another PC
Same applications and files — continue exactly where you left off
Larger touchscreen when needed — move from individual field work to detailed review and collaboration

Full Windows. Your Construction Software.

The Volanti Rugged Tablet runs Windows, giving field teams access to desktop and browser-based construction applications rather than limiting them to mobile-only apps.

Use software your team already works with, including:

Also, see our Volanti Apps for Your Touchscreen

Comparison of Volanti Plan Review Tables in different sizes, 43", 55", 65"featuring 55-inch, 65-inch, and larger touchscreen models for digital construction workflows.

Built for the Jobsite

15.6" optically bonded FHD touchscreen with anti-glare treatment
800-nit display for improved visibility in bright environments
IP65 rated for protection against dust and water
MIL-STD-810H tested for shock, vibration and 3 ft drops
Rain, glove and stylus touch modes
Dual hot-swappable batteries for extended field operation
Integrated carrying handle
Operating temperature from -20°C to 60°C
Optional 4G LTE / 5G connectivity

Up to 11 hours battery operation, with hot-swappable dual batteries for extended use.

Features & Specs

15.6" sunlight-readable FHD touchscreen, optically bonded with anti-glare treatment
IP65 sealed against dust and water; MIL-STD-810H shock, vibration and 3 ft drop
Intel Core i5 running Windows 11 IoT Enterprise LTSC — your construction software, unmodified
Two hot-swappable batteries for around 11 hours, changed without shutting down
USB-C, dual Gigabit LAN and Wi-Fi 6E, with optional 4G LTE or 5G

Specification	Volanti 15.6" Rugged Tablet
Display	15.6" FHD 1920 x 1080, optically bonded
Brightness	800 nits standard, 1,000 nits optional
Contrast	800:1
Viewing angle	85° up, down, left and right
Touch	PCAP multi-touch with switchable rain, glove and stylus modes
Surface	Anti-glare, sunlight readable
Processor	Intel Core i5-1235U, 12th generation, up to 4.4 GHz
Memory	8 GB standard, 16 GB or 32 GB optional
Storage	128 GB SSD standard, up to 2 TB optional
Operating system	Windows 11 IoT Enterprise LTSC 64-bit
Battery	Two hot-swappable 11.55 V 3,220 mAh Li-Ion
Battery life	Approximately 11 hours
Wireless	Wi-Fi 6E and Bluetooth; 4G LTE or 5G optional
Location	GPS and GLONASS
Cameras	2 MP front, 8 MP rear with autofocus and LED
Ports	3 x USB-A 3.0, 1 x USB-C (PD 3.0, ALT mode), 2 x Gigabit LAN, micro SDXC, nano SIM, 3.5 mm audio
Sealing	IP65, dust tight and protected against water jets
Ruggedisation	MIL-STD-810H shock, vibration and 3 ft drop
Electromagnetic	MIL-STD-461G
Operating temperature	-20°C to 60°C (-4°F to 140°F)
Dimensions	387.7 x 256.1 x 27.5 mm (15.3 x 10.1 x 1.1 in)
Weight	2.8 kg (6.2 lb)
Security	TPM 2.0 and Kensington lock
Supplied with	Power adapter and cord, two batteries, capacitive stylus, top handle

Note: Touch and stylus support are software dependent, for example Bluebeam supports touch and stylus.

Frequently asked questions

Let us know if you have other questions...

What software does the tablet run?

Windows 11 IoT Enterprise LTSC, so it runs the same construction software you already use on a desktop — Bluebeam Revu, Procore, AutoCAD, Revit, PlanSwift, Navisworks and anything else built for Windows. Nothing to port, and no cut-down mobile version to work around.

Can it be used outdoors, in rain or with gloves on?

Yes. The screen is optically bonded with an anti-glare treatment and runs at 800 nits, so it stays readable in direct sun, and the touch layer has switchable rain, glove and stylus modes. The body is IP65 sealed against dust and water jets.

How long does the battery last, and what happens when it runs out?

Around 11 hours on the two supplied batteries. They are hot-swappable, so a fresh pair goes in without shutting the tablet down or closing your drawings. A separate charger is available if you want a set on rotation.

How tough is it, in testable terms?

It is tested to MIL-STD-810H for shock, vibration and a 3 ft drop, and to MIL-STD-461G for electromagnetic compatibility. It operates from -20°C to 60°C (-4°F to 140°F).

Can I use it with a Volanti plan review display?

Yes. Connect over USB-C and the tablet drives a compatible Volanti touchscreen, so the same computer, applications and files carry from the field to a 43", 55" or 65" screen back in the trailer or office. See the Volanti Plan Review Tables.

Downloads & Links

Volanti Plan Review Tables — pair the tablet with a 43", 55" or 65" screen
Software compatibility — what runs on Volanti hardware
Volanti software — Plan Viewer, Action Clipper and Control Panel
Request a quote — configuration and pricing
