Volanti Plan Tables: Built for Plan Review, Coordination, and Decision-Making

Name: Plan Review Tables
Brand: Volanti Displays

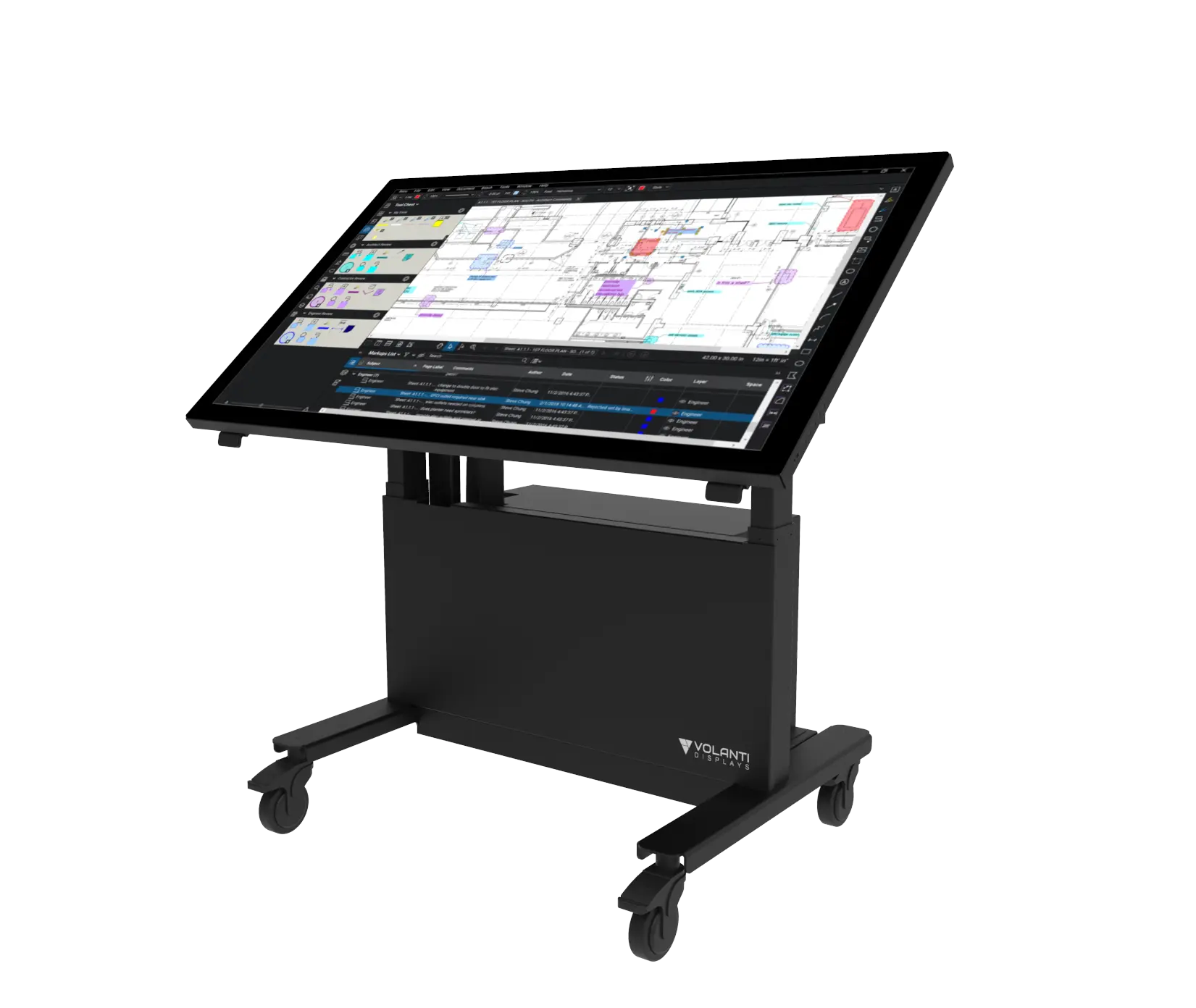

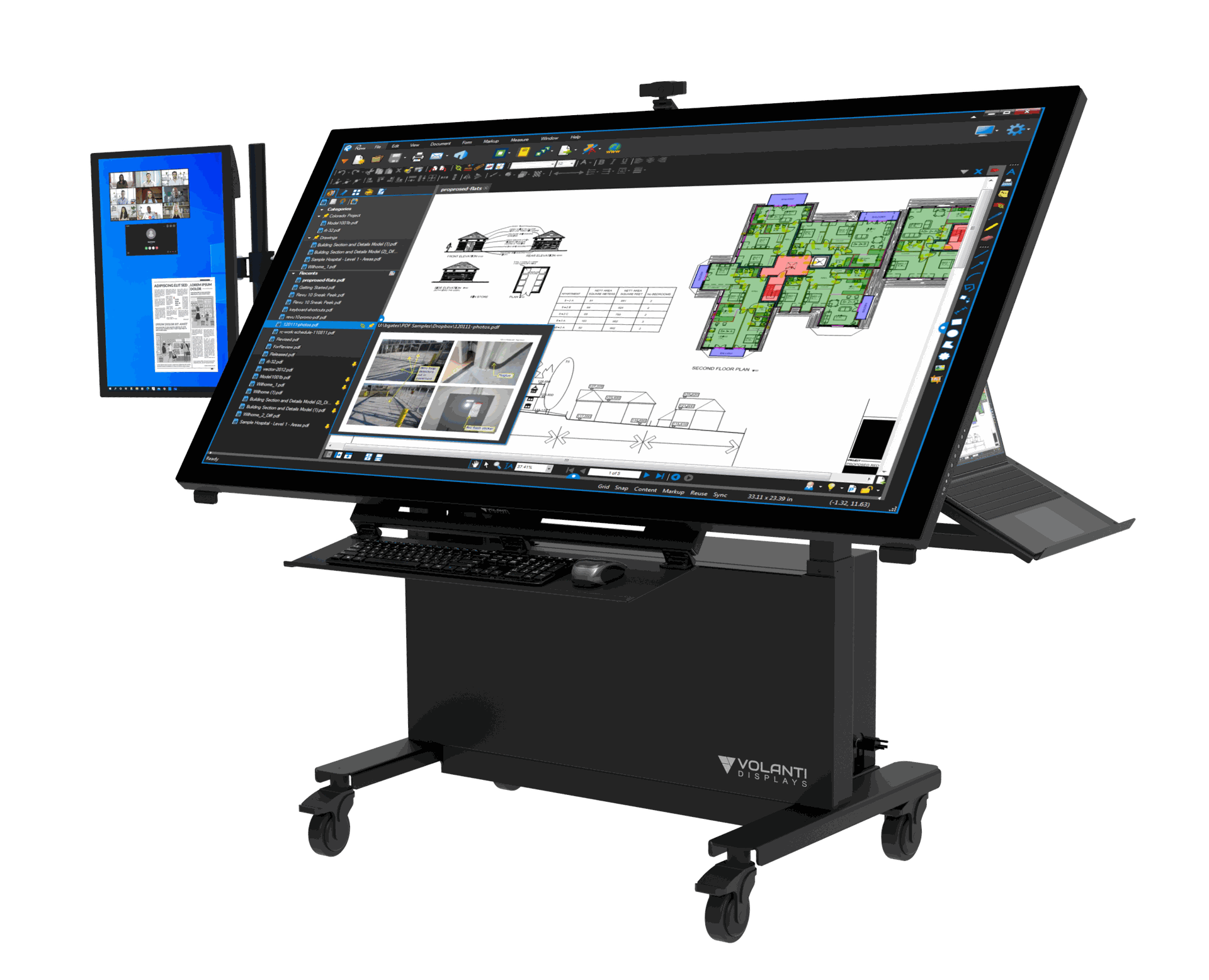

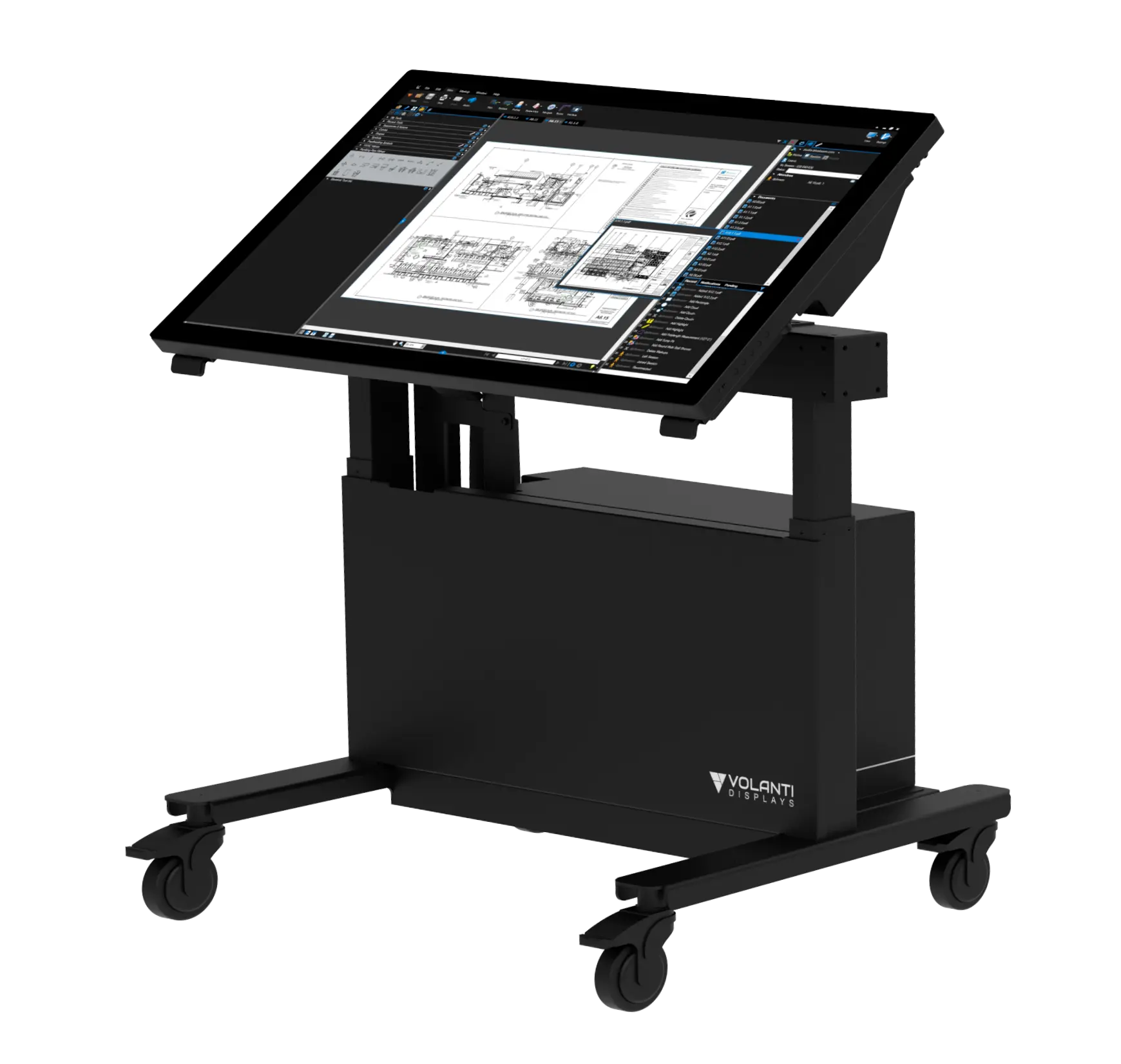

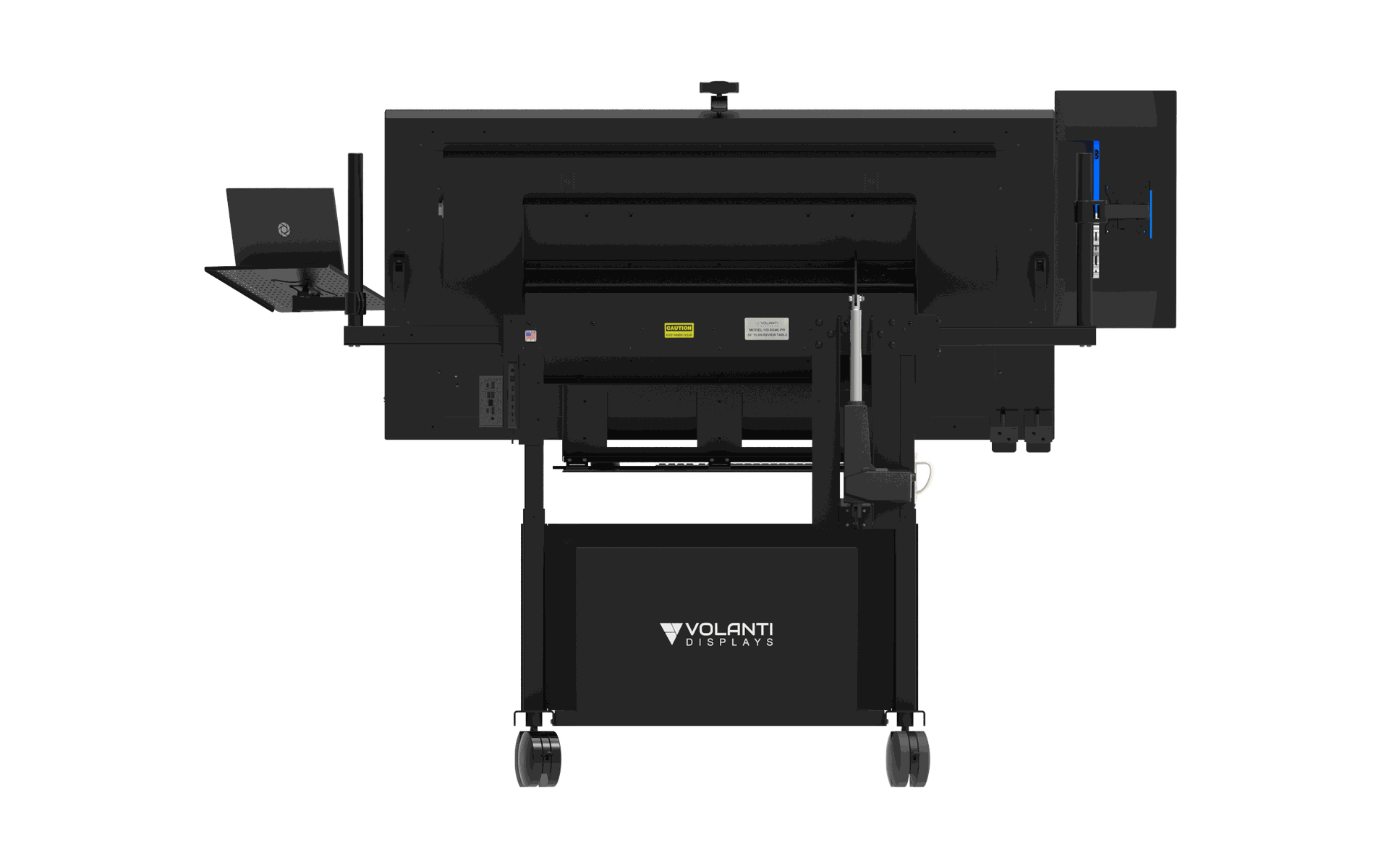

43", 55", 65" Optically Bonded Touchscreen in Electrically Adjustable Plan Review Tables

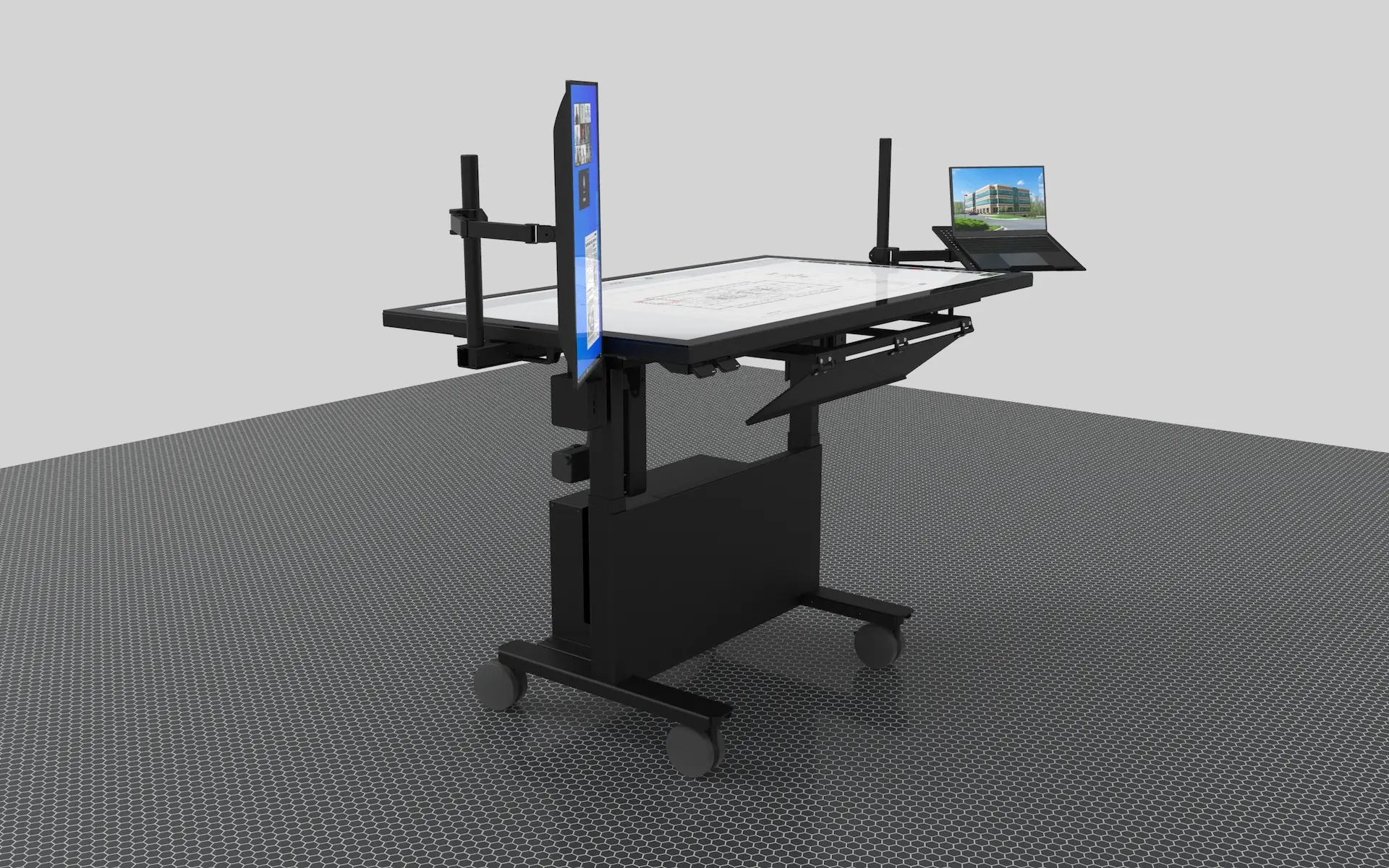

Adjustable digital workstation enabling real-time collaboration for architects, engineers, and construction managers.

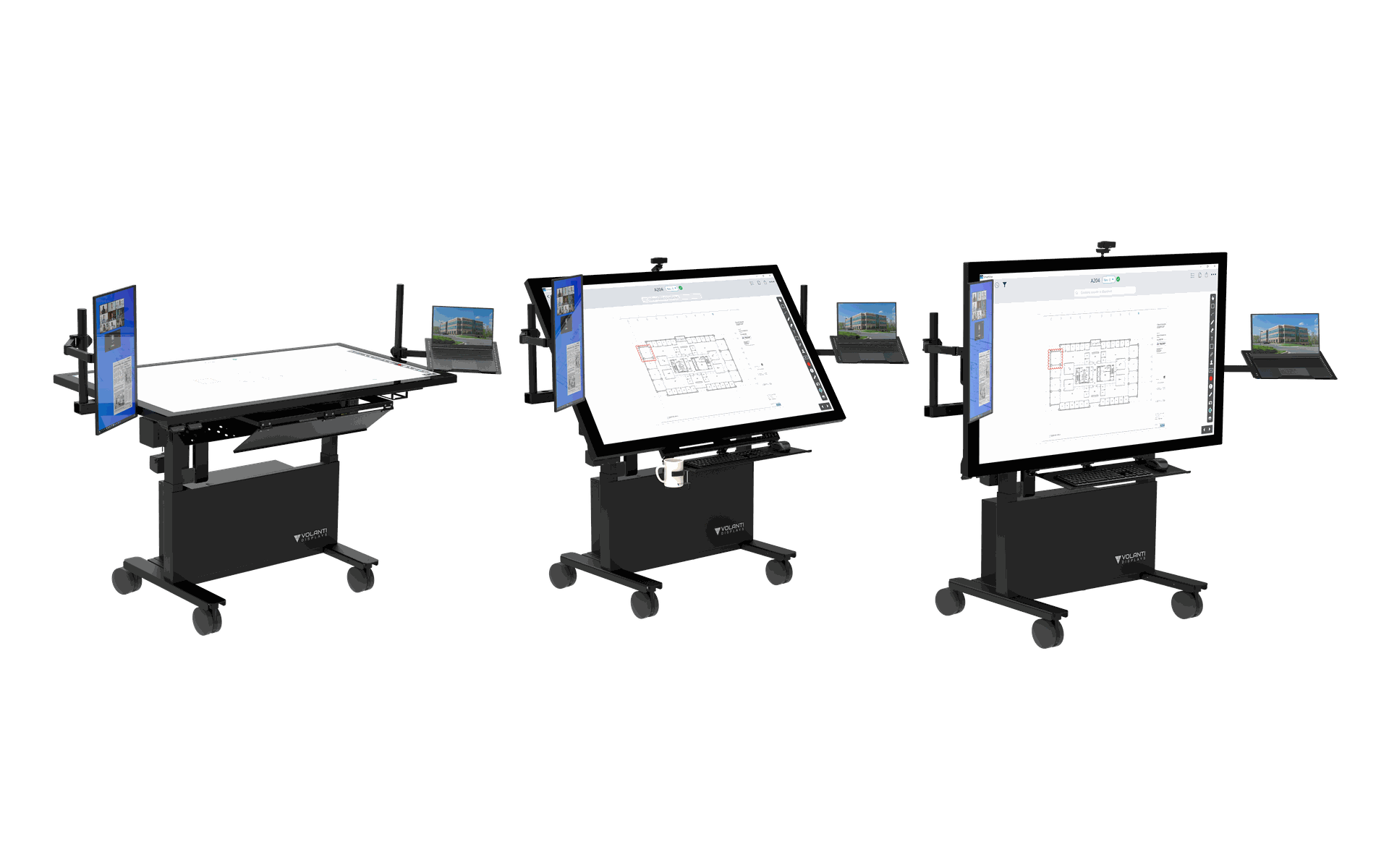

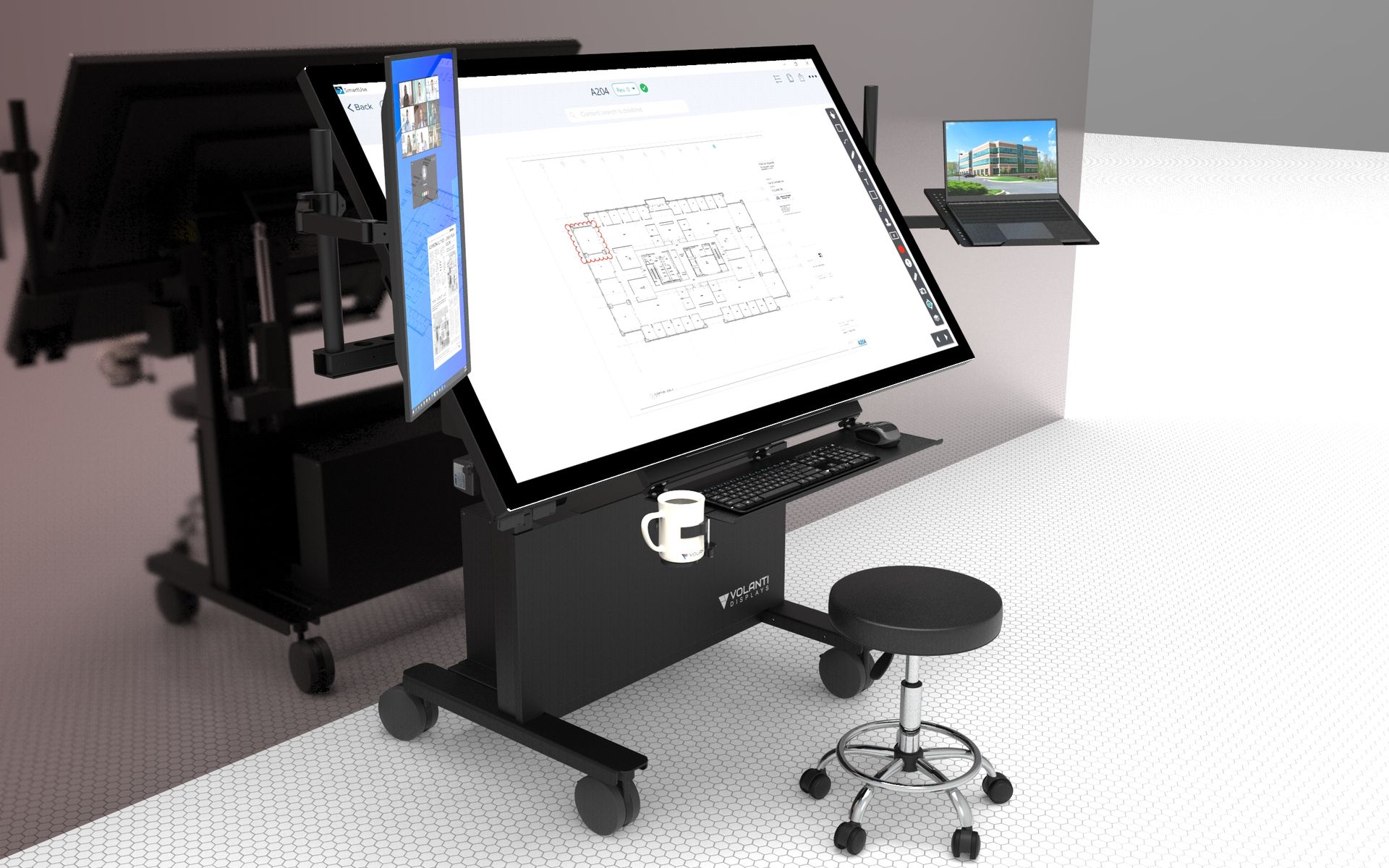

Customizable digital workstation with multiple configuration options for construction and design professionals

Portable backup battery system keeping digital construction planning operational during power outages.

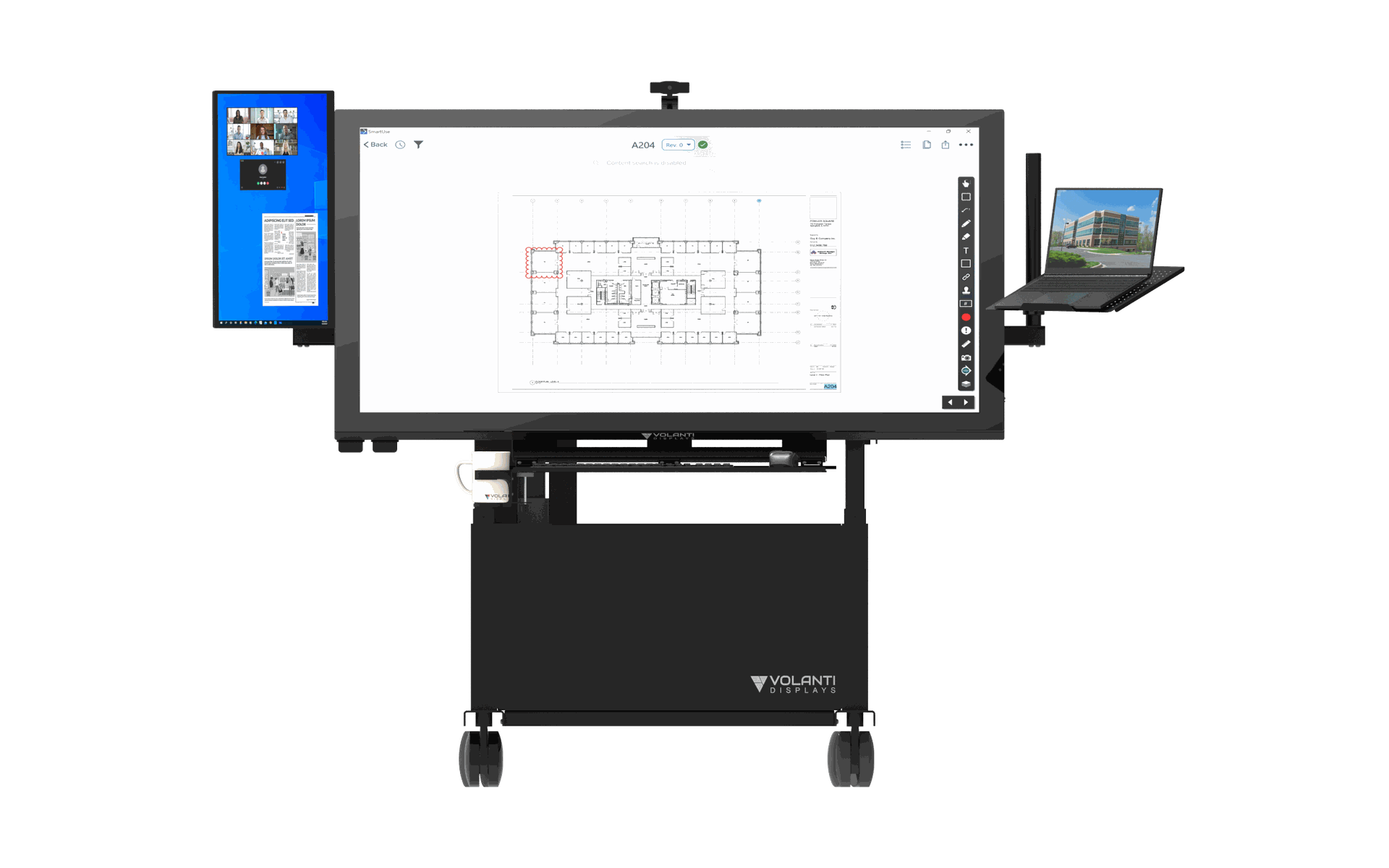

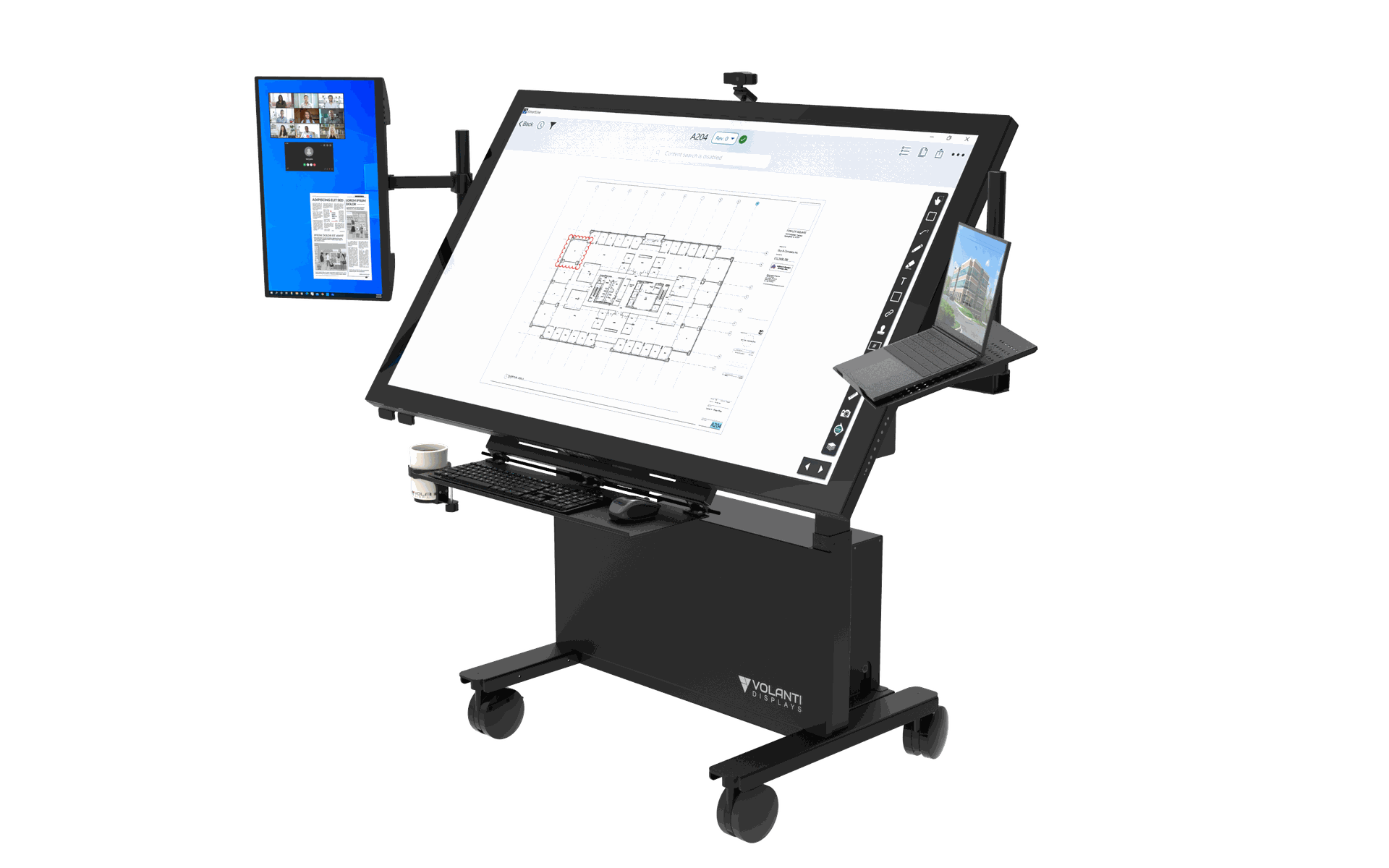

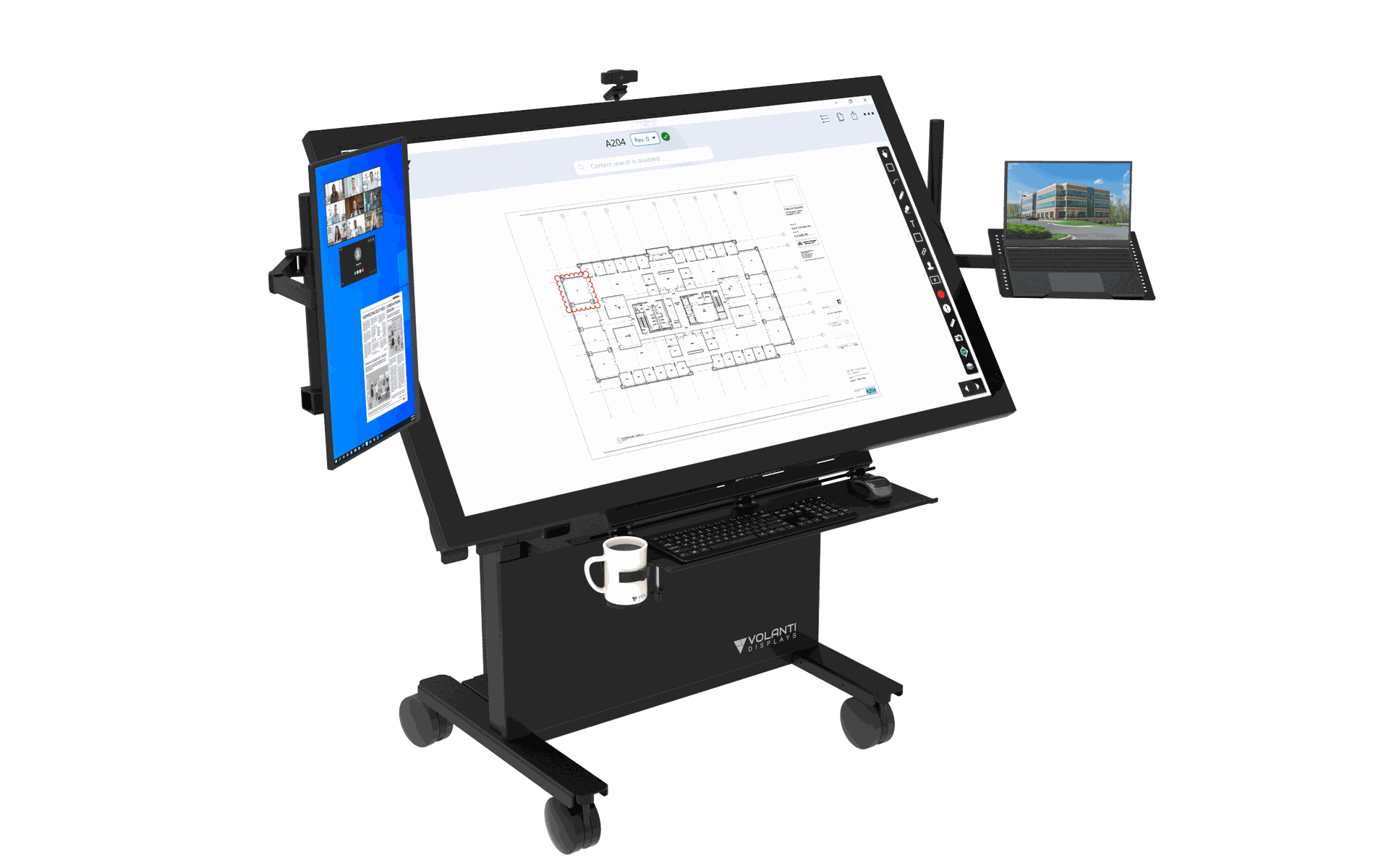

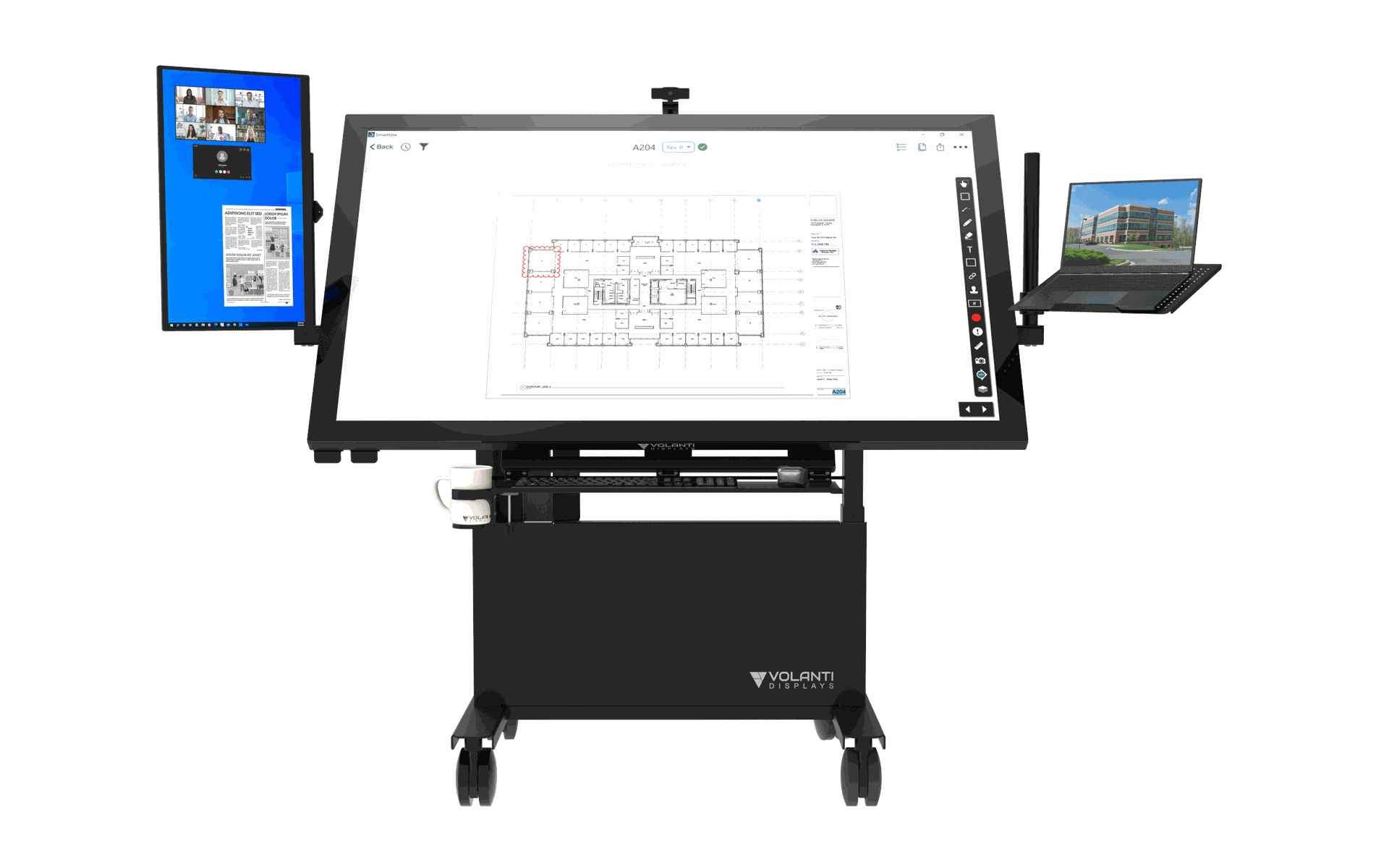

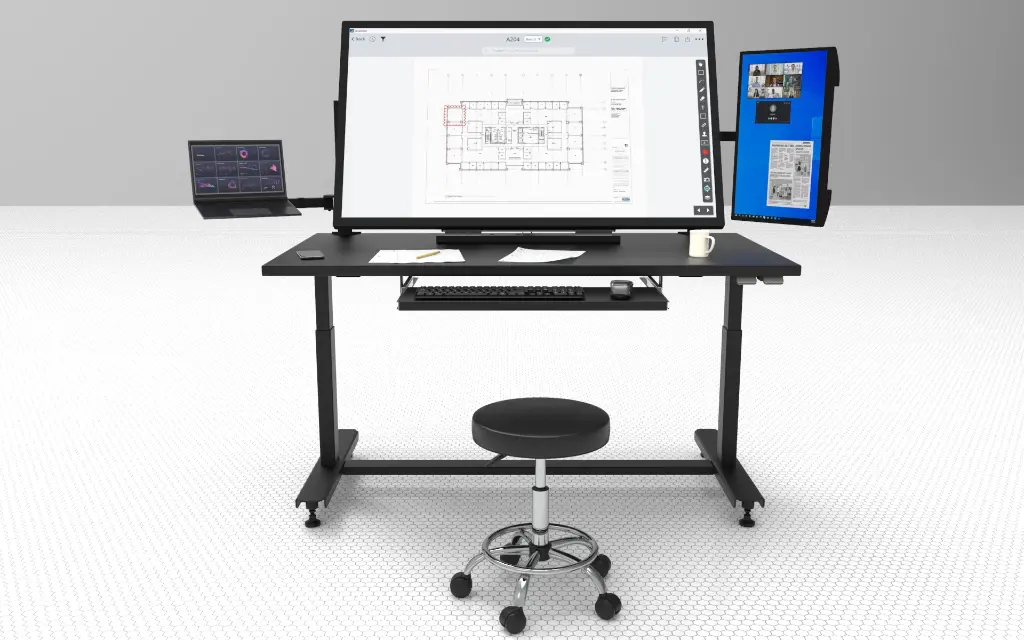

Additional display setup for side-by-side construction document comparison and workflow efficiency.

Reduce Rework, Paper Waste, and Fatigue

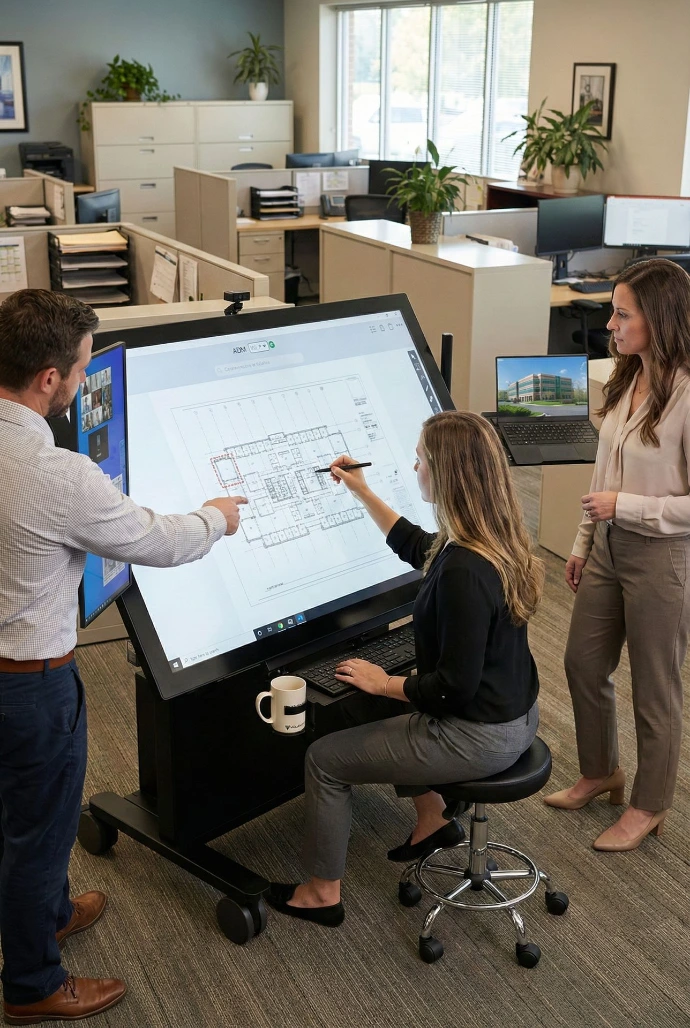

Teams review the full plan set at once, instead of working from fragmented sheets, printouts, or small screens.
Issues are identified and resolved in the room, while everyone is present and aligned, reducing follow-up and rework.
Fewer printouts and fewer transcription errors, lowering the risk of mistakes caused by missed or misread information.
Long review sessions without neck, eye, or posture fatigue, making extended coordination practical rather than exhausting.

The Volanti Plan Review Table supports these outcomes by combining a large-format, optically bonded touchscreen with an electrically adjustable steel and aluminum frame. The display is clear, supports active stylus input with palm rejection, and adjusts for seated or standing use, allowing teams to work accurately and comfortably through extended plan review sessions.

Book an Online Demo

See Plans at Scale

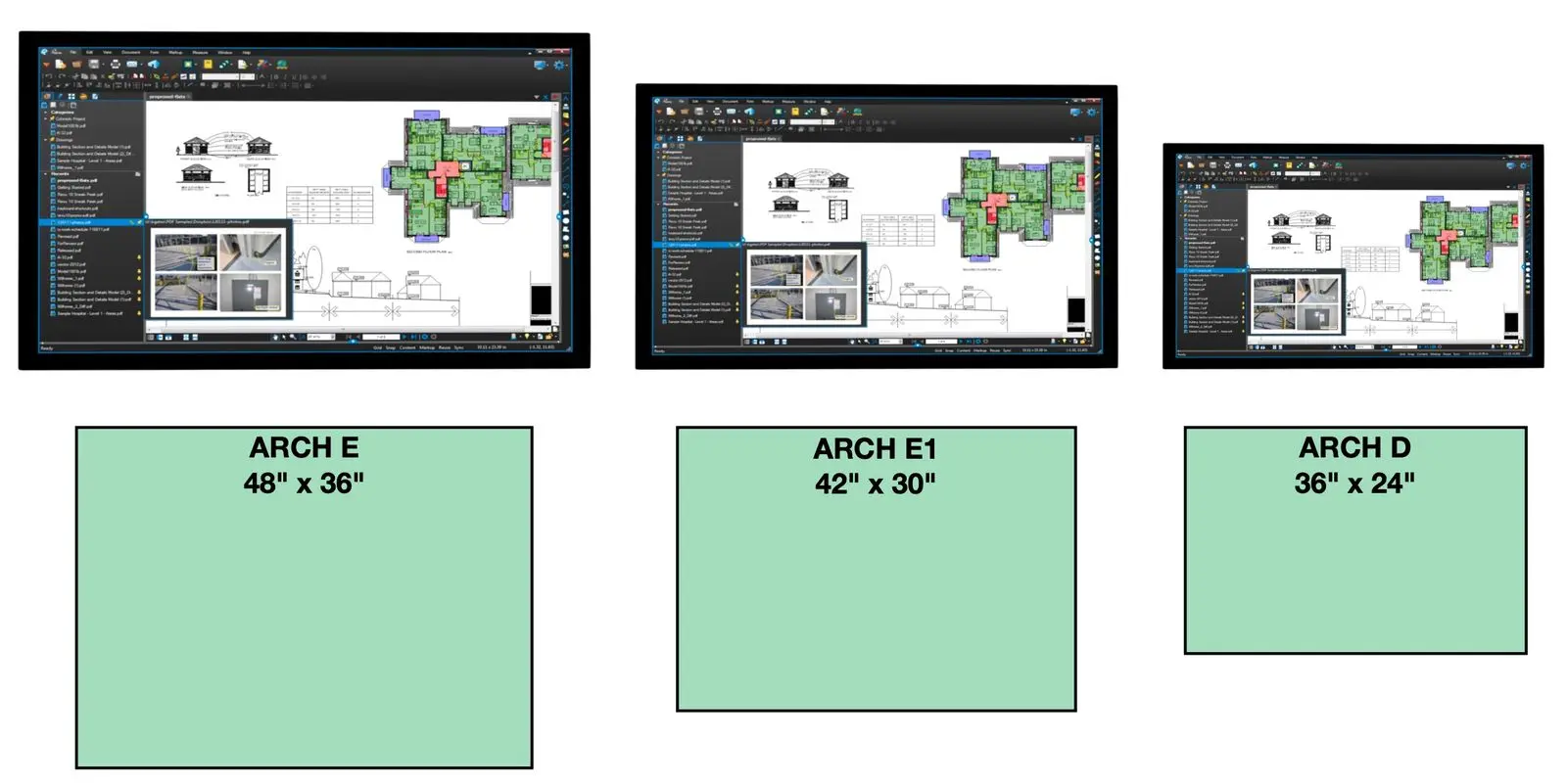

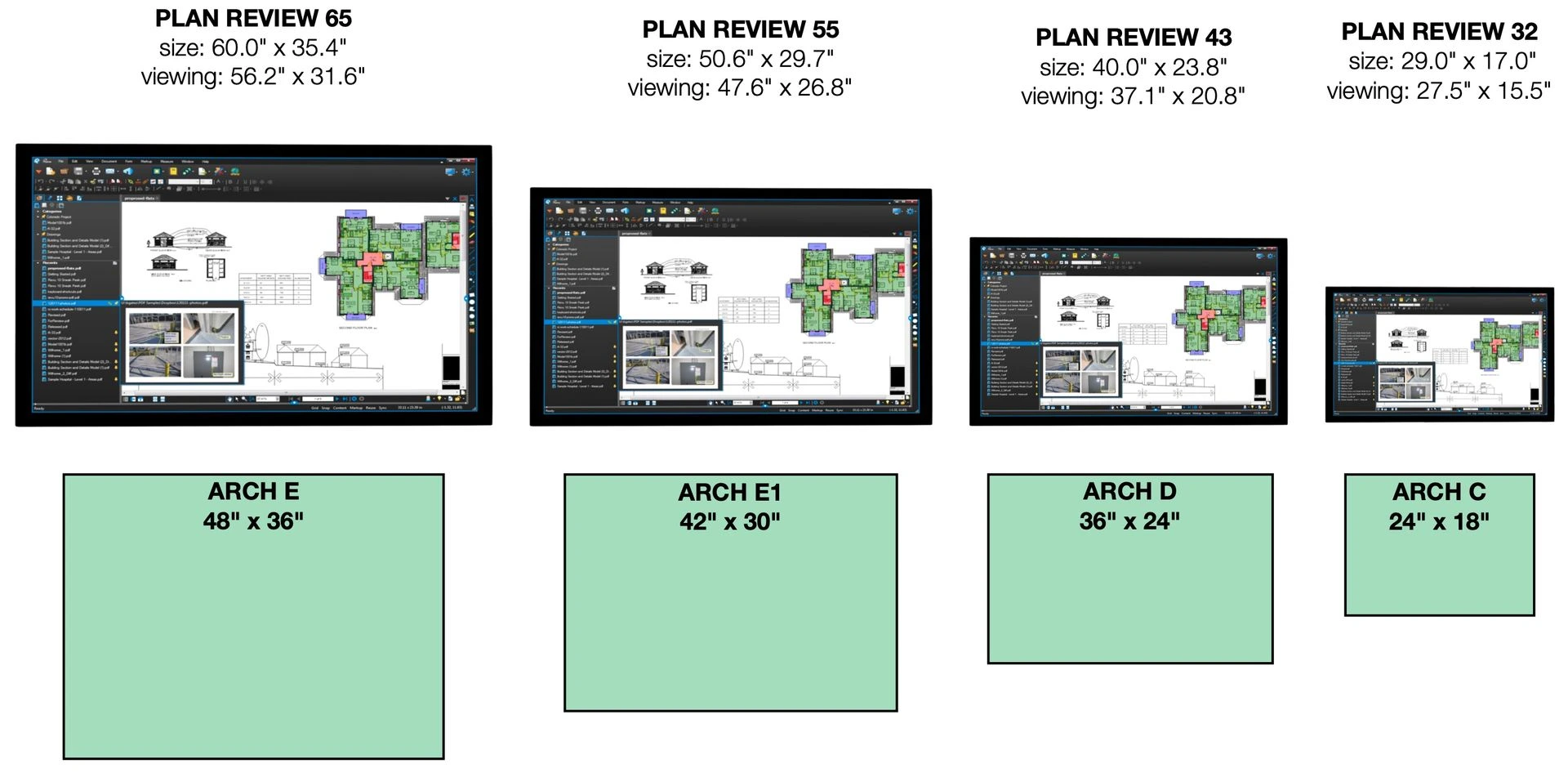

ARCH D, E1, and E2 drawings load at true scale on Volanti Plan Review Tables, so dimensions remain accurate and readable without constant zooming or panning.

View full architectural and engineering sheets at once, including ARCH D, E1, and E2 formats
Maintain accurate dimensions at true scale, supporting reliable measurement, markup, and takeoff
See context across the entire drawing, rather than working from cropped or magnified fragments

" As a general contractor, we decided to purchase (2) 43" Tabletop Displays to utilize for plan review with our subcontractors, owners, architects/engineers, and internally. They have been extremely helpful on our project so far and provides us some cost savings for plan reproduction." - Christopher

" We use their plan review table in our office and it has been a game changer. Very good display with flexible capabilities allowing us to use it as a conference monitor or a takeoff screen. Also nice to get the clear large image when trying to plan detour routes " - Davis

" Just got the 55 inch work station for plan review and its awesome. The product speaks for its self. Have had zero problems. The purchasing and customer service process was easy with a quick delivery." -Chris

"Volanti Displays was very helpful in providing options for digital plan tables for our onsite office. We have been using the 55" Plan Review Table, model VD-554K-PR3, as well as the keyboard tray and laptop tray for a couple months now, and love it. Thanks Michael!" - Joshua, ESI

Works with construction software you already use

Volanti Plan Table displays are a key part of the construction tech stack, they connect to Windows 10, 11 and other devices, giving your team the flexibility to work directly in Bluebeam, Revit, Navisworks, Procore, and more construction software without extra hardware or adapters. By bringing plans, markups, schedules, and collaboration tools onto one interactive surface, the Plan Table becomes the digital workflow hub for your project team.

Plan Table 3D Viewer

click and move, scroll to zoom

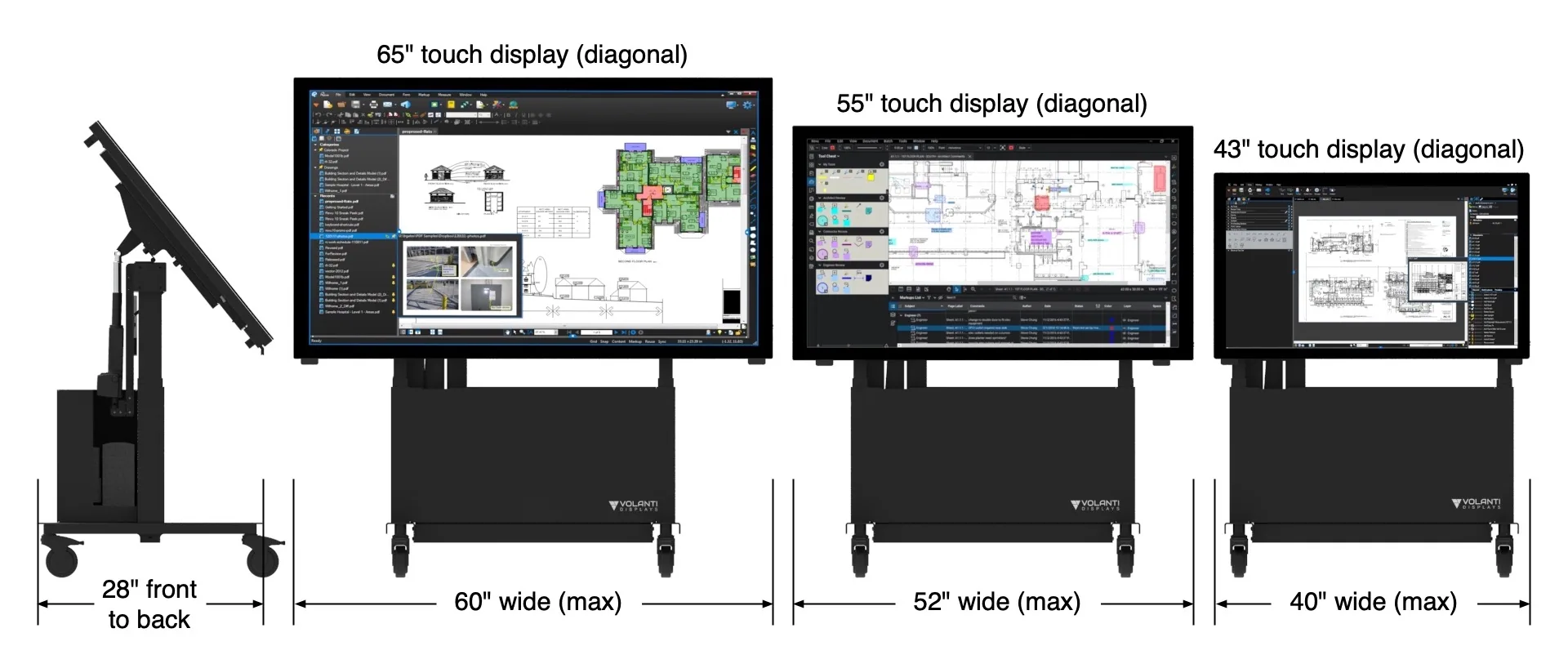

Comparison of Volanti Plan Review Tables in different sizes, 43", 55", 65"featuring 55-inch, 65-inch, and larger touchscreen models for digital construction workflows.

Built to Move with the Job

5" heavy-duty casters (two lockable): keep it steady or rolling as needed
Optional 30-ft retractable power reel, battery backup: makes setup fast
For added mobility ask about our roadcase, or see our Tabletop versions

Features & Specs

43″, 55″, and 65″ tilt‑adjustable 4K touchscreens
>3mm optically bonded toughened glass with anti-glare
Steel‑aluminum frame, powder-coated
Responsive 10‑point touch & stylus support, with palm rejection
Accessory options, keyboard tray, side-monitor, UPS, and more

Specification	43"	55"	65"
Resolution	Ultra HD (3840 x 2160)	Ultra HD (3840 x 2160)	Ultra HD (3840 x 2160)
Input	USB-C, HDMI, DisplayPort	USB-C, HDMI, DisplayPort	HDMI, USB-B
Brightness	500 nits	700 nits	500 nits
Contrast	4000:1	4000:1	4000:1
Multi-touch	10 points	10 points	10 points
Technology	PCAP 10 point multi-touch	PCAP 10 point multi-touch	PCAP 10 point multi touch
Height:table/vertical,CTR	38"	34"-59"	38"
Accuracy	<1.5mm	<1.5mm	<1.5mm
Glass, surface treatment	3mm Toughened, anti-glare,	3mm Toughened, anti-glare,	3mm Toughened, anti-glare
Detection (note)	Finger/Stylus, Palm Rejection	Finger/Stylus, Palm Rejection	Finger/Stylus
Wheels - casters	5" non-marking, brakes	5" non-marking, brakes	5" non-marking, brakes
Lift mechanism duty cycle	10% max, 2 min/18 min	10% max, 2 min/18 min	10% max, 2 min/18 min
Display Power	100-240VAC, 50/60hz	100-240VAC, 50/60hz	100-240VAC, 50/60hz
Base Power	100-240VAC, 50/60hz	100-240VAC, 50/60hz	100-240VAC, 50/60hz
Warranty	2 years	2 years	2 years
Accessories	22" Touch and 24" Non Touch Screen Side Monitor, Keyboard Tray, Laptop Tray, Webcam, Equipment Cover, Retractable Power Reel, Backup Battery, PC, Keyboard, Mouse, Cupholder, phone charger	Same as 43"	Same as 43"
Size: Display Active Area	37"W x 20.8"H	47.6"W x 26.8"H	56.2"W x 31.6"H
Size: Outer edges-cover glass	40"W x 23.8"H	50.4"W x 29.9"H	60"W x 35.4"H

Note: Touch and stylus support are software dependent, for example Bluebeam supports touch and stylus.

Frequently asked questions

Let us know if you have other questions...

What construction software is compatible with the Plan Review Table?

The Volanti Plan Review Table is compatible with any Windows-based construction software. It is often used with industry-standard applications such as Bluebeam Revu, Procore, AutoCAD, Revit, PlanSwift and Navisworks, allowing you to view, mark up, and estimate directly on the touchscreen without needing special drivers or adapters.

Apple Mac can also be used with the addition of a touch driver.

Do I need a separate computer to run the table?

We offer an optional NUC (mini-PC) integrated computer system for a complete turnkey solution. Also, you can easily connect your own laptop, workstation, or mini-PC running Windows 10 or 11. The Volanti Plan Review Table acts as a high-performance touchscreen monitor.

Does the touchscreen support palm rejection while using a stylus?

Yes, our displays feature PCAP 10-point multi-touch technology that supports both finger and active stylus input. Crucially, the system includes palm rejection, allowing you to rest your hand naturally on the screen while marking up plans or taking notes, ensuring precision and comfort during extended sessions.

Can the table be easily moved around a job site or office?

Absolutely. The table is designed for mobility with heavy-duty 5" casters (two lockable) that handle carpet and hard floors easily. Its slim profile (approx. 28 inches deep) fits through standard doorways, and an optional battery backup system is available to keep the unit operational during movement or power outages.

Which screen size is best for viewing full-scale architectural drawings?

We offer 43", 55", and 65" models. The 55-inch and 65-inch models are most popular for viewing ARCH D and E-size drawings at true-to-life scale (1:1), reducing the need for constant zooming and panning. The 43-inch model is an excellent compact solution for tighter workspaces.

We also offer tabletop models with an ergonomic tilt stand, see our Volanti Tabletop Plan Review touchscreens

Downloads & Links

The Move to Digital Plan Review (PDF)

The Ergonomic Benefits (PDF)

Brochure with Specs (PDF)

Quick Start Guide (PDF)

Video: Unpack & Assembly video(video link)
